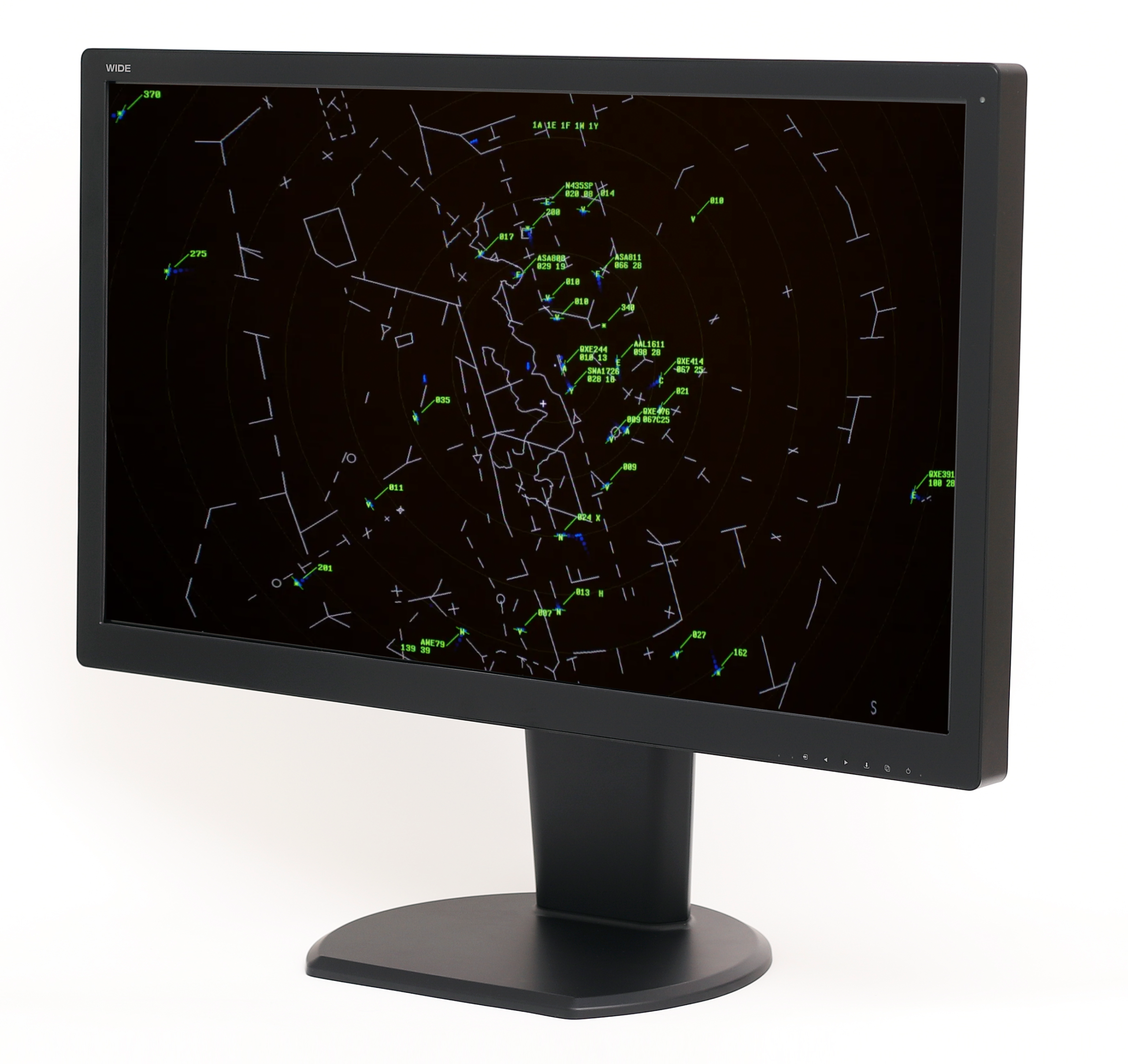

32″ ATC Display (IDP3200UH)

• Maximum Brightness (500cd/cm2)
• Multi-window Displays
• Dual DisplayPort 1.4 & Dual HDMI 2.0b Inputs
• Dual Power Supply (Optional)
• Stereo Audio Output
• Eco-friendly

<Buy now

Model IDP3200UH
Native Resolution 3,840 x 2160
Active Display Area 697.31(H)mm X 392.23(V)mm (27.45” X 15.44”)
Active Screen Size (Diagonal) 31.5” (800.05 mm)
Viewing Angle (Typ) 89˚/ 89˚/ 89˚/ 89˚ (U/D/L/R)
Brightness Max. (Typ) 500 cd/m² (Max), 250 cd/m² (Default Calibrated)
Contrast Ratio (Typ) 2,000:1 (Typ.)
Multi-window PIP, PBP, Triple, Quad
Digital Video Input 2x DisplayPort 1.4, 2x HMDI 2.0b
Display Communication USB, SNMP (RJ45), RS232 Communication
Vibration 1.03 G for 5 ~ 200Hz, Random
1 hour (Z:30 min., X,Y:15 min. respectively)
Power Supply 90~264V AC, 47~63Hz / +24V DC, 5A
Altitude Up to 15,000 ft (Operating)
Up to 30,000 ft (Storage)
Display Adjustments Source, Down, Up, Select, Menu, Power
LED Light (AmbientLite®) Yes
Luminace Stabilization Sensor Yes
Power Consumption 75(Max), 55W(250cd/m2), Power Save Mode: 3W
Power Connector External Adpator (4 pin)
Monitor Type Desktop Stand-alone (DT)
Chassis/Console Mounting (CH)
Mounting Hole (VM) (with 100x100mm ESA Standard Mounting Interface)
Weight 17.375kg/38.31(CH/VM) with a stand-base & w/o protective glass
Dimension 745.2mmx449.9mmx59.7mm/29.34”x17.71”x2.35” (CH/VM)
745.2mmx617.7mmx282.7mm/29.34”x17.71”x11.14”(DT)
Operational Temperature Operating : 0˚C ~ 40˚C (32˚F~104˚F)
Storage : -20˚C ~ 60˚C (-4˚F~140˚F)
Operational Humidity 10% – 85%
Storage Temperature 5% – max 95% @ 40°C (104°F) Relative
Certifications and Standards EN550 32/35, FCC, KC, VCCI, UL 62368-1, CB IEC 62368-1
Options Secondary Power (External) / Protective Glass / Remote Controller



Multi-Window- The IDP3200UH is able to display up to four images from four different input sources. It supports Picture-in-Picture (PIP), Picture-by-Picture (PBP), and three and four windows on a single screen simultaneously (Total 11 different layout modes supported).
